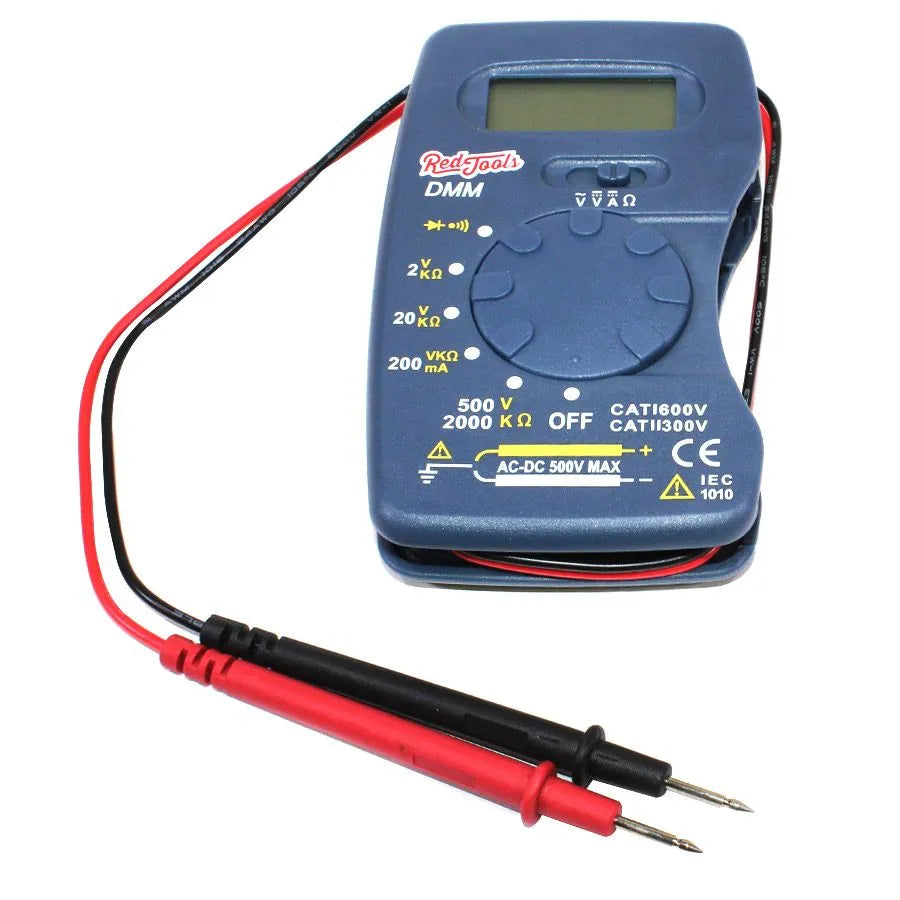

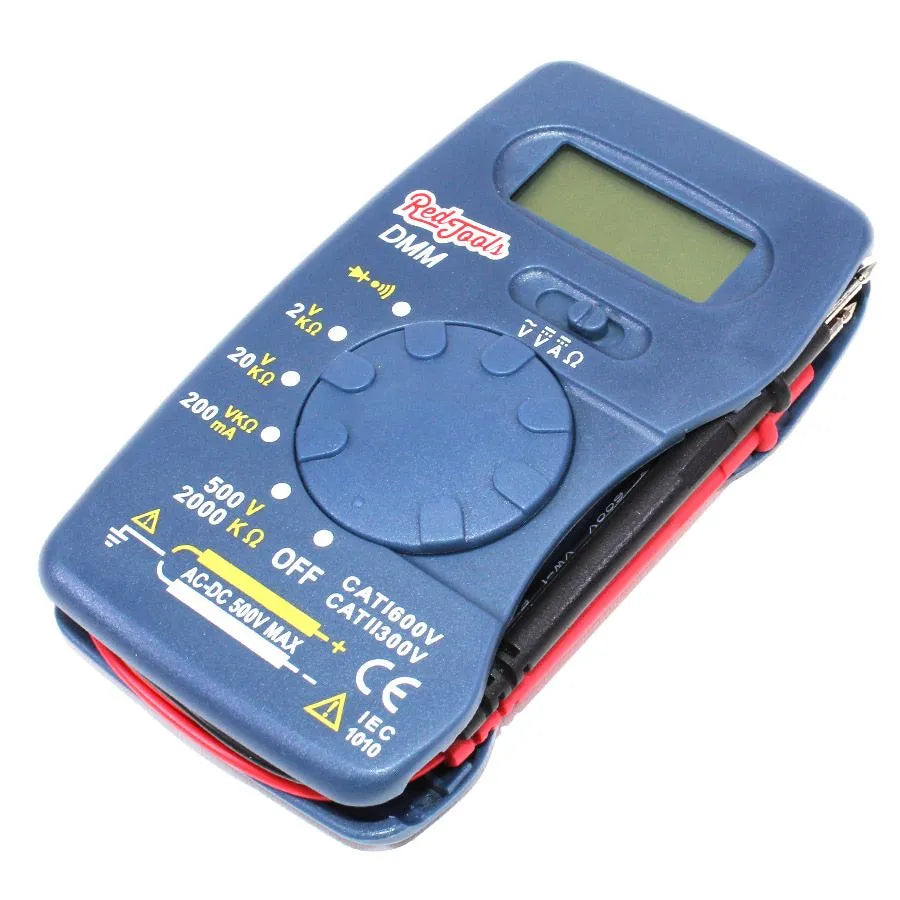

This tool accurately measures DC/AC voltage, DC current, resistance, diode test, and audible continuity. Its self-calibrating design allows you to select only the electrical unit to measure without having to choose the exact measurement range. Its LCD display and compact size are a perfect combination for getting accurate and fast results on the go.
Features :
- 3.5 cm x 1.4 cm LCD screen with maximum display of 1999
- Updates information at a speed of 2-3 readings per second
- Automatic calibration
- Easy to use
- Overload protection
- 1 x pair of integrated test probes and 1 x 12V (23A) battery included
Specifications:
- DC voltage: 2 V / 20 V / 200 V / 500 V (±0.5%)
- DC Current: 200 mA (±2.0%)
- AC voltage: 200 V / 500 V (±1.0%)
- Resistance: 2 KO / 20 KO / 200 KO / 2000 KO (±1.0%)
- Diode Test: Displays the forward voltage of the diode
- Continuity Test: A beep sounds if the conductance is less than 30 ± 20 Ohms
- Battery test: 1.5 V / 9 V
